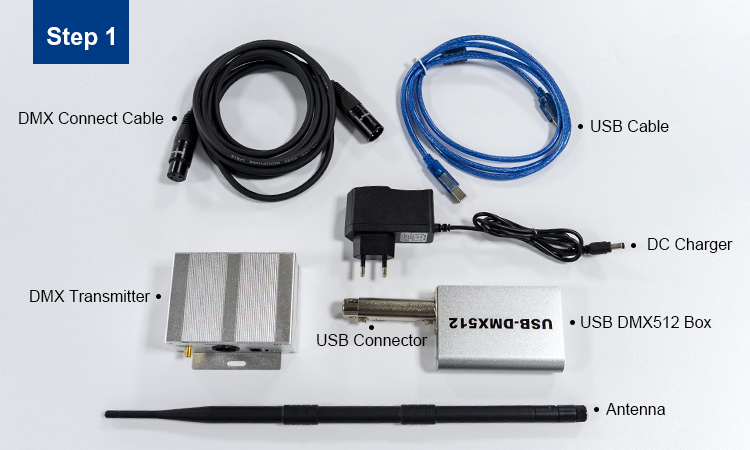

Step1: Take out the following 7PCS accessories.
- 1PC*DMX512 Transmitter Box
- 1PC*Antenna
- 1PC*6V1A DC Charger
- 1PC*DMX Connect Cable
- 1PC*USB-DMX512 Box
- 1PC*USB Connector
- 1PC USB Cabel
Note: NO. 1-4 is a standard set of GF DMX512 transmitters;
NO. 4-7 add laptop control software is a standard driver kit if you need control with the DMX512 laptop control system. This kit, can either be ordered from a similar driver as an alternative. For the USB DMX512 Box, you can buy it from ENTTEC.

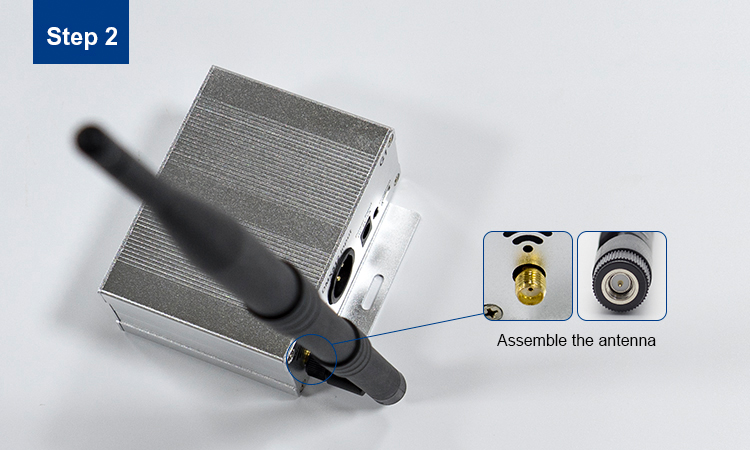

Step2:
Assemble the antenna.

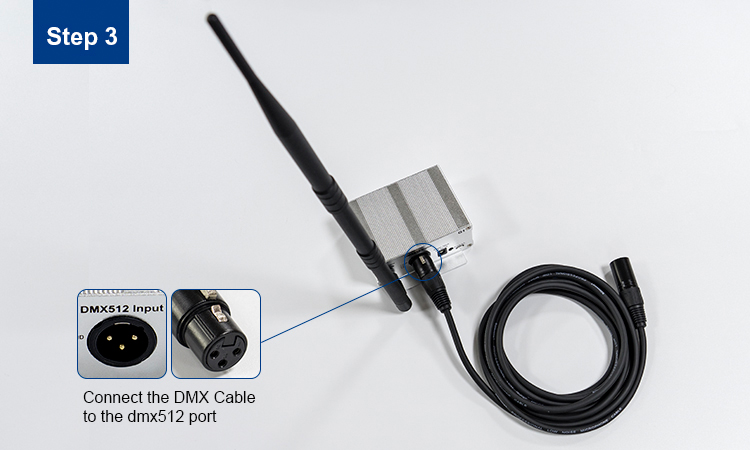

Step3:
Connect the DMX cable to the DMX512 port of the transmitter.

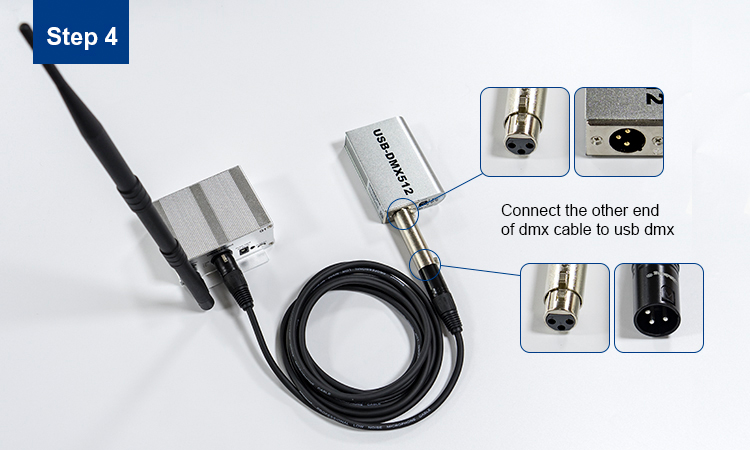

Step4:
Connect the other end of the DMX512 cable to the USB -DMX.

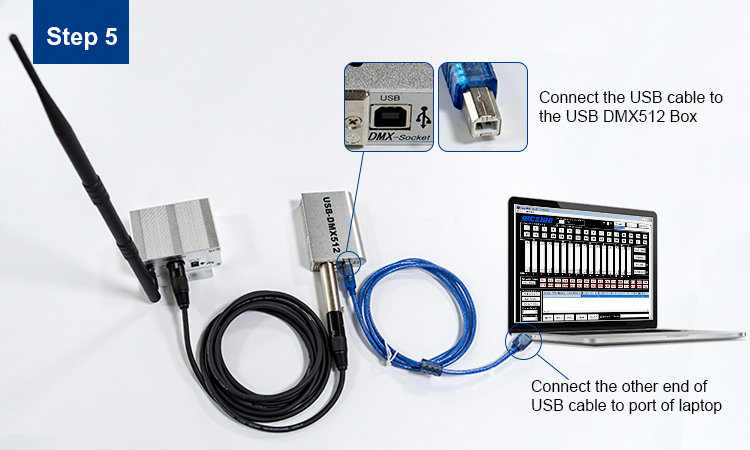

Step5:
Connect the USB cable to the USB-DMX512 box.
Connect the other end of the USB cable to the USB port of the laptop.

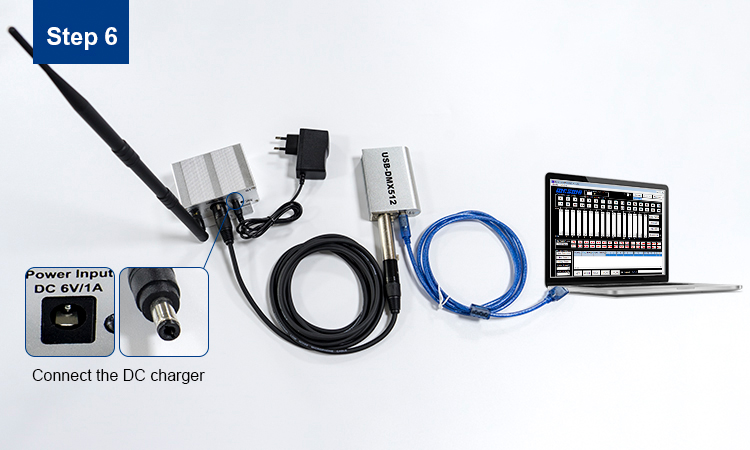

Step6:
Connect the DC charger.

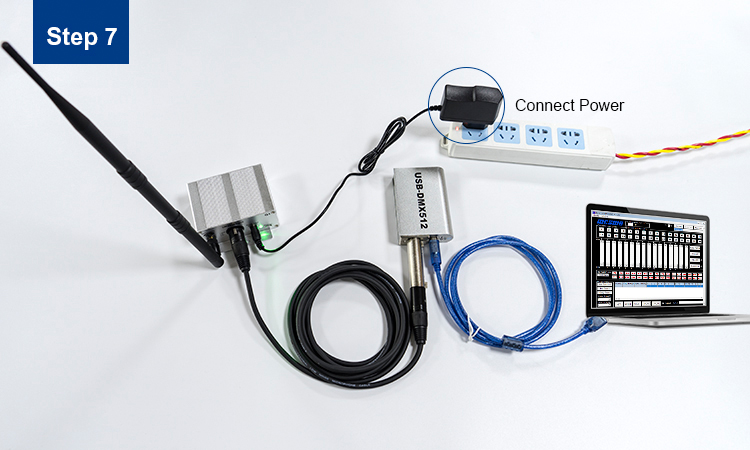

Step7:
Connect power.

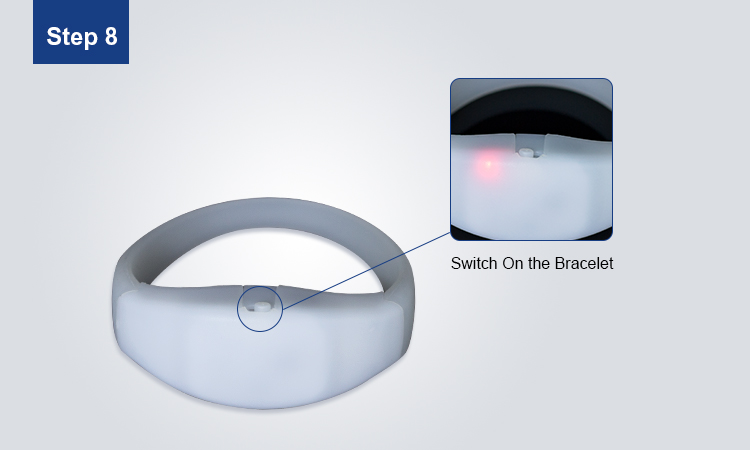

Step8:
Switch on the LED Wristbands or any other DMX512 Lightups.
